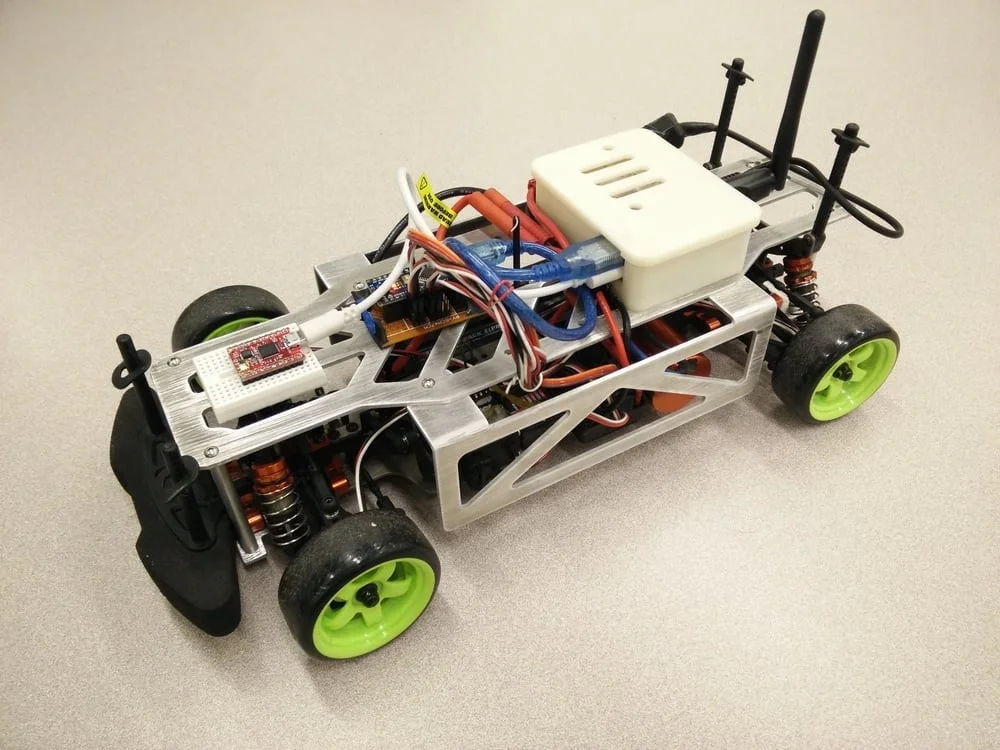

The goal of the Berkeley Autonomous Race Car Project (barc Project) is to develop an open-source, low-cost  1/10th scale model for exploring and learning a variety of design concepts. Those include mechanical design, vehicle dynamics, control, estimation, sensing and localization. Sensors, such as encoders, ultrasonic sensors, 9-axis IMU, GPS, and camera, are implemented with a on-board computing unit to achieve autonomous drive.

For more information on this project, please refer to the barc-project homepage

This is a talk I gave at JuliaCon 2016 about the barc platform and optimization-based control using the Julia programming language

The field of wireless power transmission (WPT) has received much attention in recent years, with the growth of research and development in design methodologies for consumer electronics. Within the past decade, various companies, universities and research laboratories have invested signicant resources into
the design of WPT systems, especially those for electric vehicles. Some of the major research entities involved include Wireless Advanced Vehicle Electrification (WAVE), Korean Institute for Advanced Science and Technology (KAIST), and Oak Ridge National Laboratory (ORNL).

During my internship at ORNL during the summer of 2015, I worked on the optimal control of a (magnetic-resonant based) WPT circuit to achieve maximum (or target) power transmission to an electric vehicle for stationary and dynamic applications.
The work built from the models and analysis conducted by the engineers and scientists at ORNL. The work spanned circuit theory analysis, vehicle dynamics, optimization and control. The goal of the WPT controller was to select the optimal operating frequency based on an estimate of a parameter called the mutual inductance. For cars in motion, knowledge of the vehicle dynamics and circuit model could be used to produce an estimate of how the mutual inductance would evolve over time.

The goal of this project was to develop an open-source, low-cost laser project capable of projecting industry standard ILDA (International Laser Display Association) image files. Laser projectors are typically used for theatrical and stage lighting to project vector graphics or produce lighting effects. Since laser projectors use a collimated light source that does not defocus or lose intensity with distance, they are perfectly suited for long range projection applications that would otherwise require very large and expensive long throw projectors. As an example, a low-cost laser projector could be used to projection bomb buildings with text and motion graphics for mass communication during public demonstrations. Developing an open-source, low-cost alternative to existing projection bombing methods has the potential to expand people’s ability to reclaim public space and mass communicate ideas.

This projector operates by redirecting the path of a laser beam using mirrors mounted on galvanometers to trace out thousands of points per second, creating a cohesively projected image. The system executes closed loop at 20 kHz and operates using multiple interrupts, necessitating real time and multitasking programming.

My last year at Harvard, I enrolled in a course called ES51 - Computer Aided Machine Design. This course focused on learning various important topics in mechanical design, including engineering graphics, computer-aided design, mechanical fabrication, design methodology, material and mechanics, machine elements, and kinematics. The course culminated in a final project and competition in which students groups had to transform a cordless power screwdriver and stock raw materials into a functional all-terrain vehicle.  Each student team competed against the clock in an obstacle course which required the following

1. Drive up a steep ramp while carrying or towing a heavy block of lead.
2. Enter the track and traverse a rocky field of circuit board rubble.
3. Drive in a straight line through a tight tunnel (open at the top to allow the control wires to pass through).
4. Perform a U-turn.
5. Climb over a series of half-pipe bumps without getting stuck or flipping over.

As the course progressed, we traced out various stages of the design cycle. Initially, we sketched out several concepts, then created a foam-core prototype, next designed a complete model using SolidWorks, then manufactured components using CNC milling machines, laser cutters, and 3D printers, and lastly assembled and tested our vehicle.

In the end, our vehicle completed all the obstacles and earned second place in terms of fastest time.
